Fuel cell type breathalyzer suspension alcohol detector

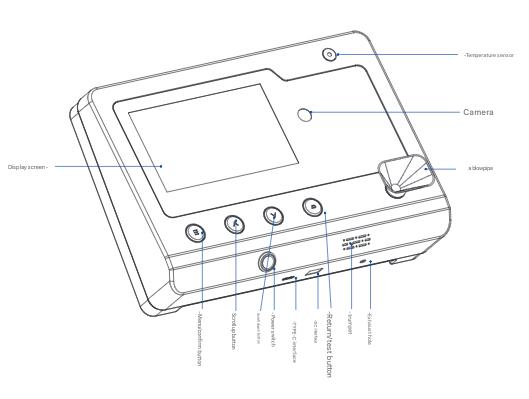

I. Button Labels
II. Button Functions
I. Menu/Confirm Button: With the device powered on, briefly press the "Menu/Confirm" button to enter the menu page. Press the "Menu/Confirm" button again in the corresponding menu to enter the menu settings directory. Press the "Menu/Confirm" button again in the menu settings directory to confirm the set parameters or open the query record.
II. Up Button (↑): After the device enters the menu, press the "Up Button" to select the menu item upwards. In the menu settings directory, press the "Up Button" to select parameter content, record, or set numerical parameters upwards.
III. Down Button (↓): After the device enters the menu, press the "Down Button" to select the menu item downwards. In the menu settings directory, press the "Down Button" to select parameter content, record, or set numerical parameters downwards.
IV. Back/Test Button: When the device is on the main page, press the "Back/Test Button" to start the testing function. When the device enters the menu, press the "Back/Test Button" to return to the previous page.
III. Operating Method
Please connect the DC5V2A adapter before use.

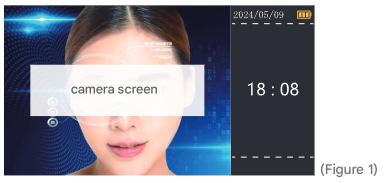

I. Alcohol and Body Temperature Detection: Briefly press the power switch to turn on the machine. The screen will display the startup screen (Figure 1).

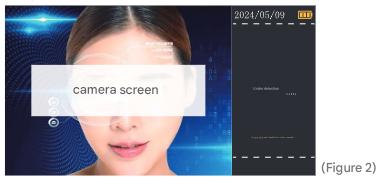

When a person approaches the device, the sensor detects the movement and activates the detection function (this function can also be activated by briefly pressing the "Return/Test" button). A voice prompt will ask you to blow air, and the screen will display "Please blow continuously for 2 seconds" (Figure 2). After blowing air directly into the air tube for 2-3 seconds, the screen will display the test results, and the device will simultaneously take a picture of the subject (test time, data, and image are all saved as a JPG image).

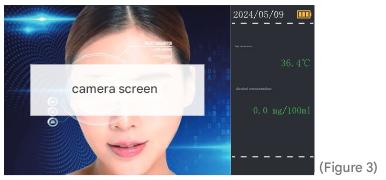

When the subject's body temperature is normal and no alcohol gas is detected, a voice prompt will say "Normal temperature, no alcohol consumption" and the right side of the screen will display "Temperature value and alcohol concentration value" (Figure 3).

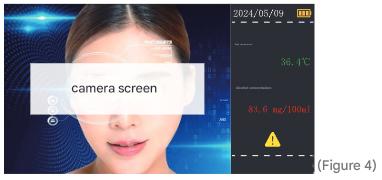

When the subject's body temperature is normal and alcohol gas is detected in the sample, a voice prompt will say "Temperature normal, alcohol consumed" and a "beep" warning sound will be heard. The right side of the screen will display the "Temperature value and alcohol concentration value" and the screen will flash a warning icon (Figure 4).
When the subject's body temperature is abnormal and no alcohol gas is detected, a voice prompt will say "Abnormal temperature, no alcohol consumption" and a "beep" warning sound will be made. The right side of the screen will display the "temperature value and alcohol concentration value" and the screen will flash a warning icon (Figure 5).

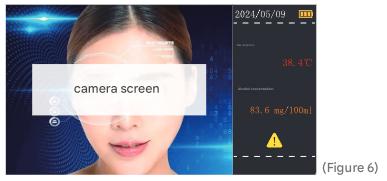

When the subject's body temperature is abnormal and alcohol vapor is detected in the sample, a voice prompt will say "Abnormal temperature, alcohol consumed" along with a "beep" warning sound. The right side of the screen will display the "temperature value and alcohol concentration value" and a flashing warning icon will appear (Figure 6).
Note: When the test result is abnormal, the device will issue an audio and screen flashing warning. You must manually press the "Return/Test" button to end the warning and restart the detection function.
II. Active and Passive Activation of Measurement Function When the device detects a moving object (approximately 10cm to 200cm away), it will actively activate the detection function, prompting "Please blow air" and displaying "Detection in progress..." on the screen. When the "Return/Test" button is pressed manually, the device will passively activate the detection function, prompting "Please blow air" and displaying "Detection in progress..." on the screen.
III. Menu Settings In the power-on state, briefly press the "Menu/Confirm" button to enter the settings interface. Use the "Up" and "Down" buttons to select up and down, press the "Menu/Confirm" button to confirm, and briefly press the "Return/Test" button to return to the previous level.
You can configure or view the menu items: "Record Query, Display Unit, Date/Time, Language, Volume, Screen Saver, Factory Reset, System Messages".
IV. Connection Operation
Use the included 5V2A adapter and TYPE-C data cable. Connect the 5V2A adapter to the device's DC port for power-on. Connect the TYPE-C data cable to the PC for data copying or software upgrades.
V. Product Function Description
The breathalyzer uses a rapid detection method, drawing breath from the subject to quantitatively or qualitatively determine whether the subject has consumed alcoholic beverages. The instrument can analyze and determine the result within 3 seconds. The instrument has extremely high sensitivity, minimizing the possibility of false negatives.
VI. Standard Instrument Configuration
Main unit, 5V2A power adapter, TYPE-C data transmission cable, breath tube, instruction manual, factory report, wall mount bracket. For special customer requirements, please check according to the order contract. If anything is missing or damaged, please contact your supplier immediately!
VII. Safety and Precautions
Please carefully read the relevant product instruction manual before using this product!
The performance of the product depends on proper use and careful maintenance by the user. All repairs and parts replacements must be performed by manufacturer-approved technicians.
Do not plug the AC charger into an input voltage socket that does not meet the requirements specified on the power adapter label.
VIII. Application Scope The suspended alcohol tester is suitable for densely populated enterprises and institutions such as coal mines, factories, fleets, and bus companies, requiring no personnel supervision.

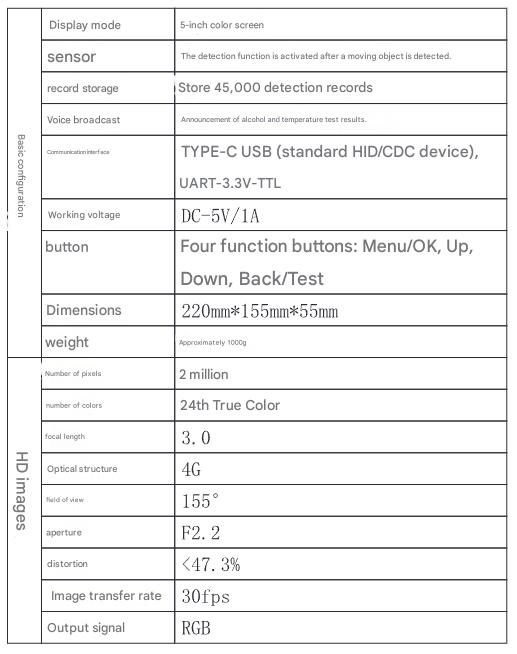

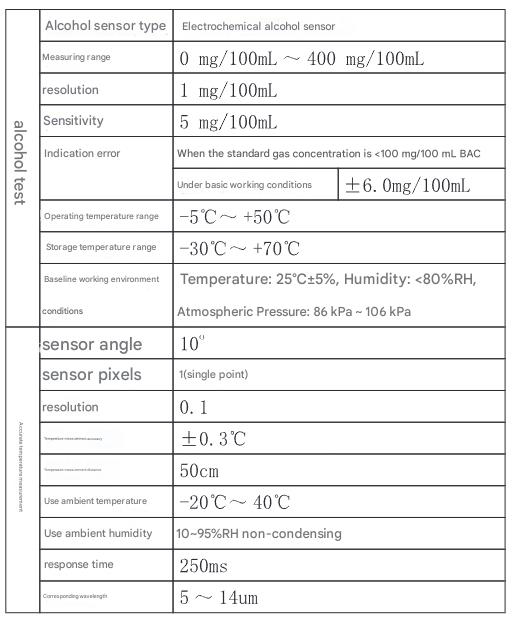

IV. Specifications
